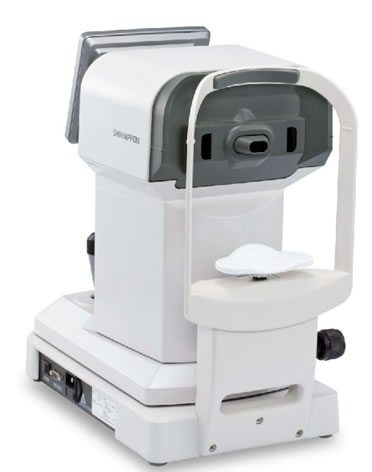

NON CONTACT TONOMETER NCT-200

New Generation DESIGN & STYLE

Exquisite detail and quality.Sophisticated shape combined with soft curves and the attractive
color with high quality two-tone metallic and pearlescent paintwork which complements any
interior and appeals atmosphere of trust to the customer.

Newly-developed smart puffing control system (S.P.C)

The S.P.C system, which includes our newly developed algorithm measurement engine, makes it possible to adjust air pressure instantly and precisely to match the patient's intraocular pressure. It also keeps noise to a minimum and ensures soft air pressure.

Newly designed smart alignment & auto shot function

Smooth and accurate alignment function. Once aligned, air pulse and measurement commence automatically. By keeping measurement time to a minimum, patient stress is reduced.

Reliability Warning Display

The warning mechanism displays an asterisk on the screen when measurement reliability is low.

＊ display on the left

"Is the measurement point properly aligned?"

＊ display on the right

"Is the patient’s eye opened wide?"

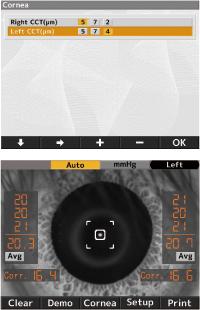

Convenient IOP correction function

The IOP value is corrected automatically by simply inputting the central corneal thickness. This can be done easily before or after measurement.

Three functions for superior safety

When the nozzle is too close to the patient's eye, an alarm is triggered and the words “Too Close” appear on the monitor. In addition, the safety stopper function prevents contact with the patient's eye.

Feather touch sensor button

The feather touch sensor button, designed for compatibility and interface with the screen, make our non-contact tonometer easy and reliable to operate.

Unique LCD Monitor

A swivel function to the left (30°) and a vertical tilt function (40°) have been added to the monitor unit. This swivel function allows measurement while supporting the patient..

Improved forehead and chin rests

Side flaps mounted to each side of the measurement window enabling to block out the light realizes high accuracy. The modified shapes of the forehead rest and the chin rest help to minimize stress of the patient.

New Joystick

The completely redesigned joystick with the shape and top button allows the operator to control the unit with more precise and instinctive movement.

Specifications

Intraocular pressure (IOP) measurement range	1mmHg～60mmHg/0.1kPa～8.0kPa
Measurement resolution	1mmHg/0.1kPa
Working distance	11mm
Target	Fixation light: green (blinking/non-blinking options)
Measurement start procedure	Manual, automatic
IOP correction function	With a corneal thickness input function
Built-in monitor body	5.7 inch color LCD monitor
Printer	thermal line printer (paper width 58mm)
Power voltage/frequency	AC100V-240V, 50/60Hz
Power consumption	60VA
Power saving function	OFF, 3, 5, 10min. (selectable)
Data Output	RS-232C interface
Size	(W) 240mm/(D) 422mm/(H) 430mm
Movement range of the measurement unit	Forward/backward ±22mm
	Horizontal direction ±43mm
	Vertical direction ±17mm
Movement range of the chin rest	vertical ±30mm
Movement range of LCD	+30°swivel (left only),+40°tilt
Weight	approx. 13kg
Standard Accessories	Operation Manual,Power cord,Printer paper,Fuse,Dust cover,Measuring nozzle cap,Paper covers for chin rest,Chin rest cover pin,Cotton swab
